GIGABYTE Unveils X870 AORUS Infinity: A High-Performance AM5 Motherboard for Overclockers
GIGABYTE has officially introduced the X870 AORUS Infinity Socket AM5 motherboard, engineered specifically for competitive overclockers and enthusiasts seeking top-tier performance. Debuted during the G.Skill Computex Memory OC competition and featured in GIGABYTE’s 40th Anniversary showcase, this motherboard stands out with its unique design and advanced features tailored for extreme overclocking scenarios.
Optimized Layout for Test Benches

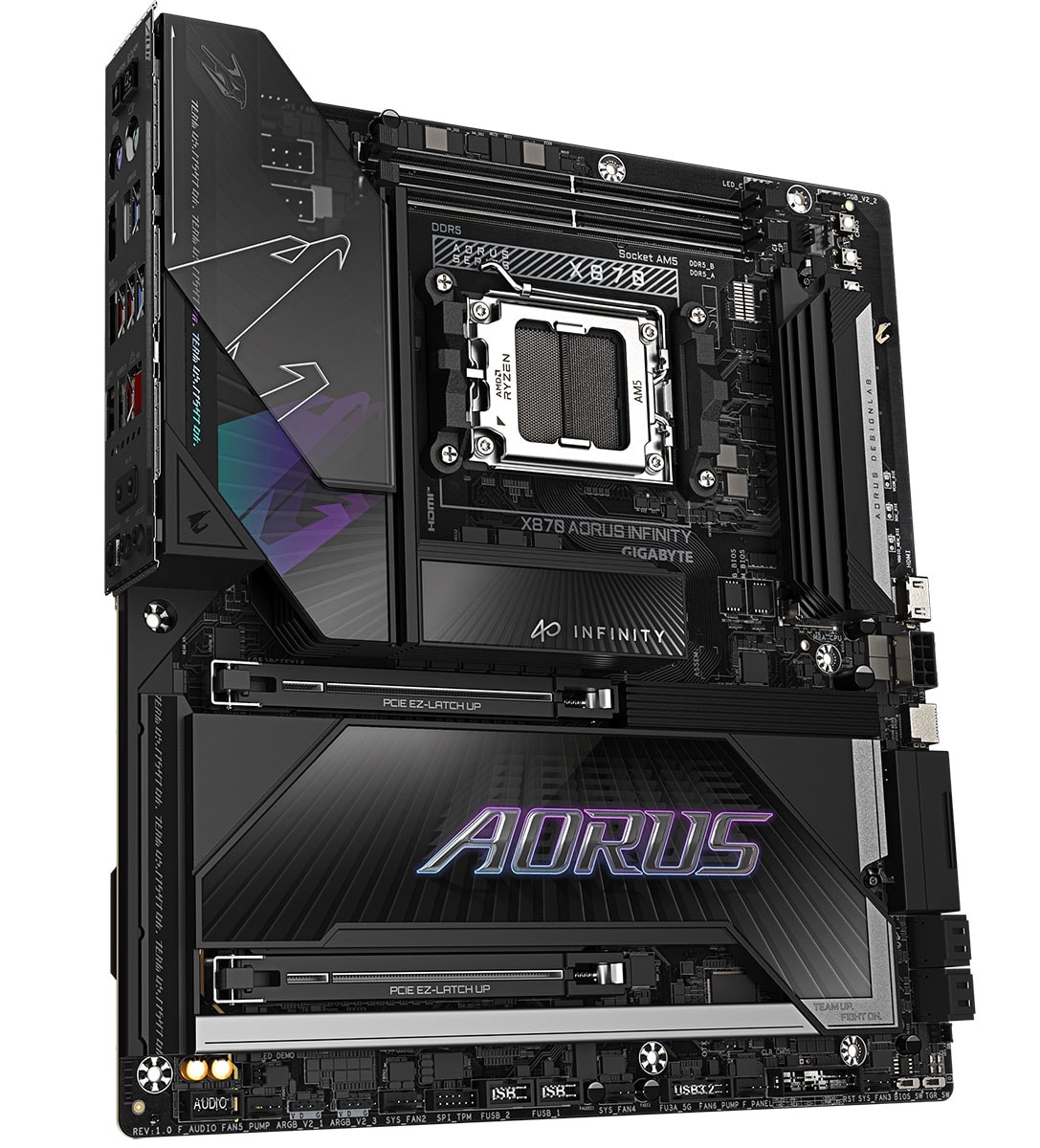

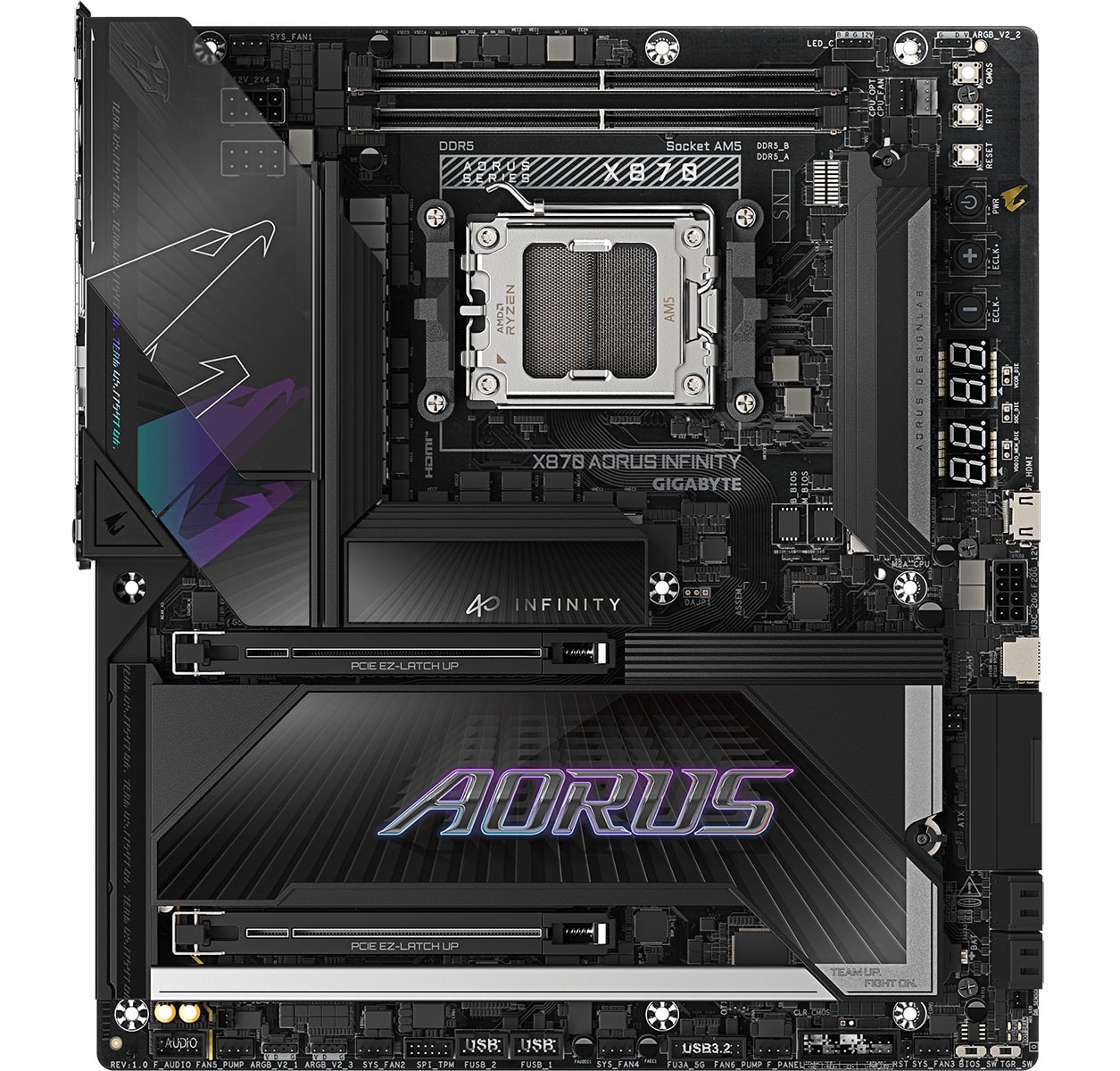

Although the X870 AORUS Infinity follows the standard ATX form factor, its layout is purpose-built for open test benches rather than traditional PC cases. Key connectors, including the 24-pin ATX power input, are oriented sideways for easier cable management and accessibility. The motherboard also features a well-organized onboard control panel equipped with two sets of ISA 80h diagnostic readouts and surface-mounted buttons, including a dedicated cold reboot button. Notably, the CPU socket is rotated 90 degrees counterclockwise, allowing the DDR5 memory slots to align along the top edge for optimal airflow and accessibility.
Robust Power Delivery and Premium Components
Power delivery is a highlight of the X870 AORUS Infinity. The board draws power from a combination of a 24-pin ATX, two 8-pin EPS, and an additional 8-pin PCIe connector, which enables 65W USB Power Delivery on the USB Type-C ports. The CPU VRM features an 18+2+2 phase design utilizing 110A DrMOS and high-quality tantalum capacitors, ensuring stable power for demanding overclocking sessions. The motherboard is constructed with a 10-layer PCB, a rarity even among high-end models, providing enhanced signal integrity and durability.
Memory and Expansion Capabilities
The AM5 socket is connected to two DDR5 DIMM slots in a 1-DIMM-per-channel configuration, ideal for memory overclocking and achieving tighter memory timings. For storage, the board offers two M.2 NVMe Gen 5 x4 slots and two PCIe 5.0 x16 slots (operating at x8/x8 when both are populated), delivering cutting-edge bandwidth for graphics and storage devices. The AMD X870 chipset adds a third M.2 slot running at Gen 4 x4 speeds, expanding high-speed storage options.
Comprehensive Connectivity

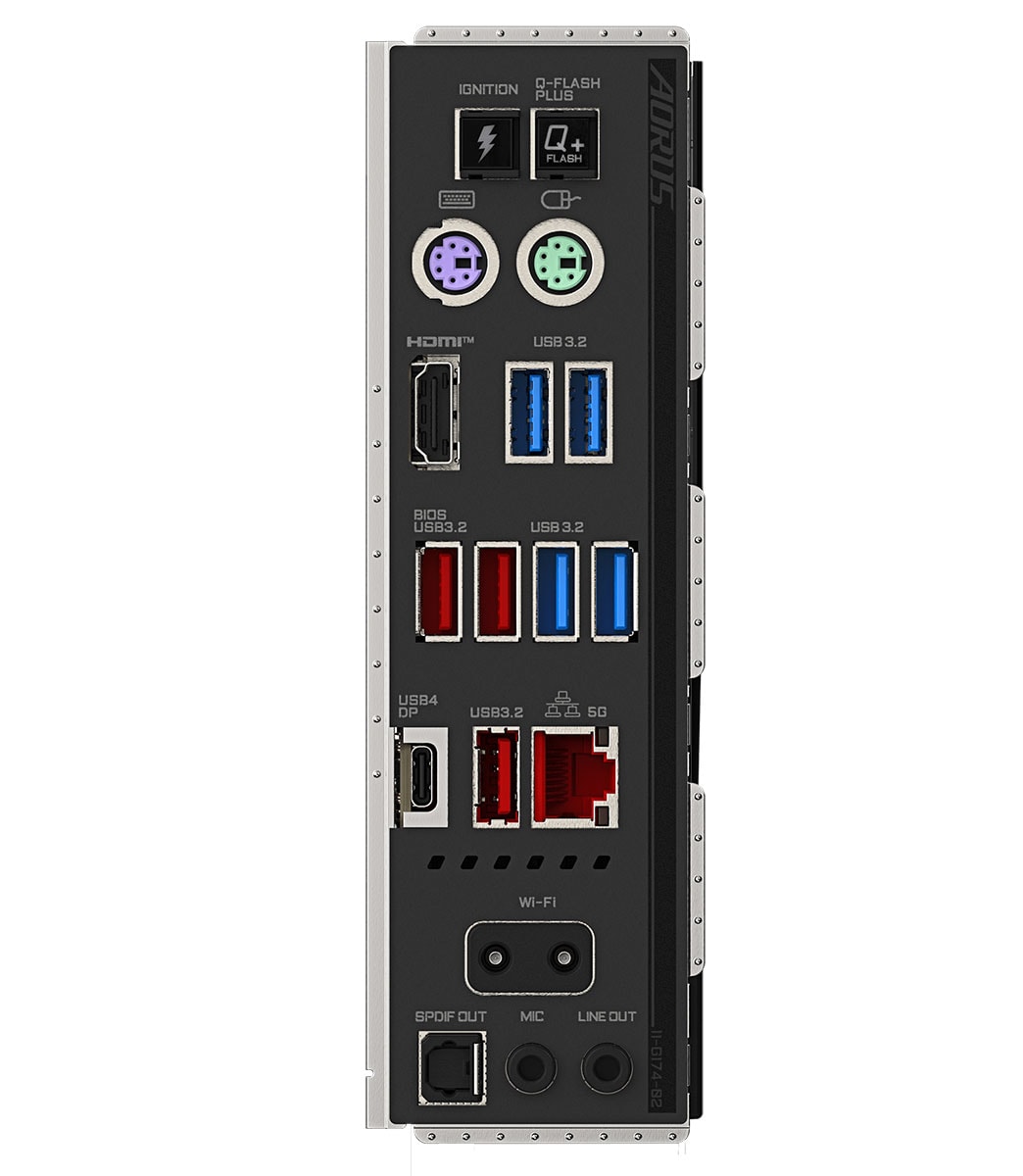

The X870 AORUS Infinity is equipped with a wide array of connectivity options. USB ports include one 40 Gbps USB4, three 10 Gbps USB 3.2 Gen 2 Type-A, four 5 Gbps USB 3.2 Gen 1 Type-A, and a 20 Gbps USB 3.2 Gen 2x2 Type-C header supporting 65W USB-PD. Additional USB connectivity is provided via internal headers, including two 5 Gbps USB 3.1 Gen 1 and eight USB 2.0 ports (four rear, four via headers).
For networking, the motherboard features a Qualcomm QCNCM865 WLAN module supporting Wi-Fi 7 with 320 MHz channel width and Bluetooth 5.4. Wired networking is handled by a Realtek RTL8126-CG controller, offering a 5 GbE LAN interface for ultra-fast data transfer. Audio is powered by a Realtek ALC1220P HDA codec, delivering high-fidelity sound for gaming and content creation.
Legacy Support and Reliability
In addition to modern features, the X870 AORUS Infinity includes individual legacy PS/2 ports for keyboard and mouse. These ports are designed to function even if the 100 MHz clock domain is unstable and USB controllers are not initialized, ensuring reliable input during extreme overclocking or troubleshooting scenarios.
With its advanced power delivery, optimized layout, and comprehensive connectivity, the GIGABYTE X870 AORUS Infinity Socket AM5 motherboard sets a new standard for overclocking-focused platforms, making it a top choice for enthusiasts and professionals pushing the limits of AMD Ryzen performance.
